Why RTU Screening Is Not Just a Mechanical Add-On
If you have been around enough projects, you know RTU screening rarely behaves like a mechanical afterthought once construction starts. In many cases, this includes rooftop hvac screening, rooftop unit screening, and broader roof screening strategies that extend beyond a single piece of equipment. On drawings, it may appear as a clean perimeter condition or a simple extension of the roofline. In reality, it becomes a coordinated system that has to satisfy visibility requirements, equipment operation, and roof constraints at the same time. Reviewing different system types early helps frame those constraints correctly.
On many commercial projects, screening is driven by zoning and line-of-sight requirements rather than preference alone. Equipment must be concealed from grade, adjacent properties, or public viewpoints. That requirement introduces a constraint: the system has to block views without interfering with airflow, service access, or equipment operation. In some cases, understanding the broader architectural screening manufacturer landscape helps frame how these systems are developed and applied.
From our experience, architects approach rooftop equipment screening as part of the overall composition. It influences massing, rooflines, and how the building reads from grade. Contractors, however, often engage when the focus shifts to attachment methods, sequencing, and cost. That difference in timing tends to create misalignment.
In our experience, rooftop equipment screening sits between architecture, mechanical requirements, and the roof system itself. This often includes coordination with hvac screening layouts, roof screen systems, and mechanical equipment screens that must function together. In practice, teams rely on engineering requirements to keep those systems aligned. It has to maintain clearance around equipment, coordinate with structural support or attachment points, and avoid introducing unnecessary risk to the roof assembly. When those factors are considered early, decisions tend to hold up better during construction.
Where Misalignment Happens
Design Intent vs Field Execution
What we see most often is that architectural intent assumes consistent relationships between screening, parapets, and the rest of the building. Screen walls may align with elevation lines, match façade materials, or follow a specific proportion. In many projects, these include hvac screen walls or rooftop screen walls designed to integrate with the building. Those relationships become more difficult to maintain once real equipment heights, roof slopes, and support conditions are introduced.
Field conditions rarely match drawings exactly. Equipment elevations can vary, structural support may dictate different attachment locations, and roof assemblies may limit how systems are installed. When those adjustments are made without reconnecting to the original intent, the screening begins to drift.
This drift usually happens gradually. Small changes to height, placement, or alignment accumulate until the installed system no longer reads the way it was designed. In simple terms, RTU screening issues usually come from misaligned clearances, attachment decisions, or sightline assumptions rather than a single major mistake.
Substitutions That Change Appearance
We see substitutions on almost every project. They help address cost, availability, and lead times. The issue is not substitution itself, but how equivalency is evaluated.
With architectural louvers and metal screening panels, small differences matter. Architectural louvers are often selected to balance airflow and concealment, but even small variations can change performance and appearance. Profile depth, spacing, and finish all influence how the system interacts with light and how it appears from a distance. A substituted system may meet basic screening requirements while still altering the building’s proportions or visual consistency. Looking at real-world installations often makes those differences more apparent.
In many cases, the substitution is technically acceptable but visually different. Without evaluating that difference against the design intent, the final result can feel disconnected even though it meets functional requirements.
Improper Installation Altering Design
Even when the right system is selected, installation details can still change both appearance and performance. Panel alignment, spacing, and attachment conditions all influence the outcome.
For example, hvac screen walls that are not installed with consistent alignment can become visually prominent instead of blending into the building. A poorly executed hvac screen or roof screen wall can draw attention instead of concealing equipment. At the same time, panels placed too close to equipment can reduce the space needed for airflow or service access.
These issues are rarely caused by a single mistake. More often, they reflect gaps in coordination around clearances, attachment strategy, or installation sequencing.
The Most Common Contractor Missteps
Choosing “Close Enough” Systems
One of the more common issues we see is selecting a system that looks similar but does not actually align with project conditions. From a construction standpoint, differences may seem minor. From a system standpoint, they can change how the screening performs.
Screen walls are not interchangeable assemblies. System selection influences how the screening attaches to the building, how it interacts with the roof membrane, and how it accommodates equipment clearances and service access. A solution that works for one equipment type may not translate directly to another. In some cases, unit-mounted screening systems provide a better fit for individual units.
In practice, different system types solve different problems. Some approaches attach directly to equipment and reduce the need for roof penetrations. Others rely on structural supports and are better suited for screening multiple units. This is where post-mounted systems are often applied. In certain cases, the screening integrates with the equipment base itself. Situations like that typically align with curb-mounted systems. Choosing between these options depends on equipment type, layout, and roof conditions, not just appearance. That is especially important when the project involves an rtu screen wall or other roof top unit screens that need to balance concealment with access.
Mechanical equipment screens are particularly sensitive to this balance because they must address visibility, airflow, and access at the same time. This is especially true for rooftop unit screening, rtu screens, and other equipment screening applications. Prioritizing one without evaluating the others tends to create issues later.
Ignoring Sightline Requirements
A lot of rooftop equipment screening decisions are driven by visibility from grade. In many projects, screening height and placement are developed based on specific viewpoints around the building.
Those assumptions can break down if field conditions are not verified. Changes in equipment height, roof elevation, or surrounding structures can expose portions of equipment that were intended to be concealed.
This is usually not a design failure. It is a coordination gap. Sightlines that are established during design need to be confirmed against actual conditions before installation is finalized.
How Better Coordination Improves Outcomes
Early Collaboration Between Teams
The projects that actually go smoothly are the ones where rooftop equipment screening gets addressed earlier than expected. Architects, contractors, and mechanical teams align on equipment layout, screening height, attachment approach, and clearance requirements before fabrication begins.
This early coordination allows teams to evaluate real constraints rather than assumptions. Getting early project coordination in place usually resolves conflicts before they reach the field. It also improves how rooftop hvac screening and roof screening systems are integrated into the broader project. It also creates room to compare different screening approaches and determine which one supports both design intent and operational needs.
Clear and Specific Specifications
Specifications end up playing a bigger role than most teams expect. Screening systems must meet visual requirements, maintain clearance for airflow and service, and respond to structural and roof conditions. This includes ensuring hvac screening and rooftop mechanical screen systems meet both performance and design expectations. Without clear direction, those priorities can be interpreted differently in the field.
Defining panel types, finishes, alignment expectations, and performance criteria helps reduce ambiguity. At the same time, allowing for engineered solutions within those parameters gives contractors flexibility to adapt without undermining the original intent.
What Contractors Should Evaluate Before Installing RTU Screening
Material Finish and Durability
Material selection ends up affecting both appearance and long-term performance more than most people expect. Finishes must withstand weather exposure, temperature variation, and rooftop conditions without degrading prematurely.
Contractors should consider how materials will perform over time. Color stability, corrosion resistance, and surface durability all influence whether the system maintains its intended appearance.
Visibility From Grade
Before installation starts, it is worth stepping back and looking at how the system will actually be seen from the ground. Sightlines that were studied during design should be verified against actual conditions, including surrounding elevations and viewing angles.
Small adjustments at this stage can make a meaningful difference. Slight changes in panel height or placement can help ensure that equipment remains concealed as intended.
Integration With Architectural Systems
RTU screening does not exist in isolation. It often works alongside mechanical roof screen strategies and equipment screen walls that define how rooftop systems are perceived and accessed. It connects visually and physically to the rest of the building. That connection should feel intentional and coordinated with adjacent architectural elements.

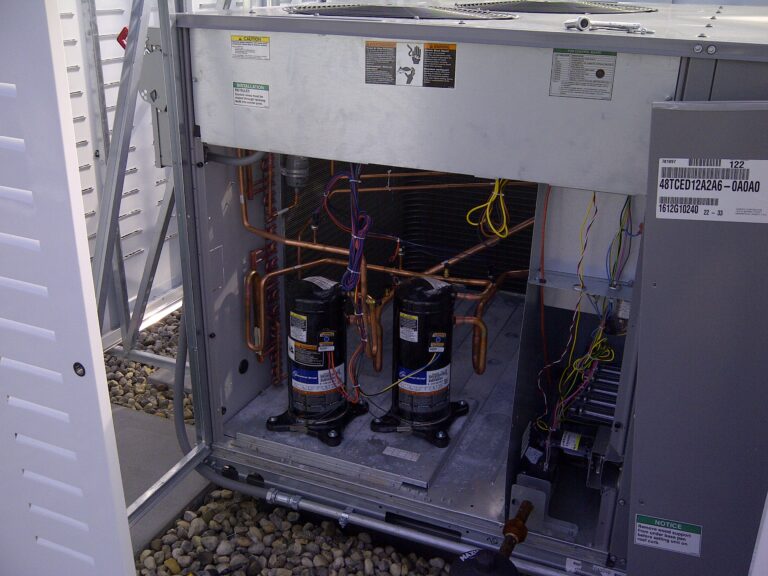

At the same time, integration is not purely visual. Screening must also align with mechanical and roof system requirements. It needs to maintain clearance around equipment, allow for safe service access, and account for how it attaches to or interacts with the roof assembly.
On exposed rooftops, wind becomes a practical consideration. Screen assemblies are subject to wind forces and should be treated as rooftop structures rather than light architectural elements. Considering attachment method, panel configuration, and exposure conditions early helps avoid performance issues later.
When these factors are evaluated together, the system is more likely to perform as intended over time.
Frequently Asked Questions
Why does rooftop equipment screening create tension between architects and contractors?
It often comes down to timing and priorities. Architects focus on design intent early, while contractors focus on execution later. When those perspectives are not aligned, decisions can diverge.
Are screen walls always the best solution for rooftop equipment?
Not always. Screen walls are effective in many cases, but other approaches such as enclosures or alternative screening systems may be more appropriate depending on equipment type, layout, and roof conditions.
How can teams reduce misalignment during construction?
In many cases, reviewing installation footage can help teams understand how systems come together in the field.
Early coordination, clear specifications, and consistent communication all help. Verifying clearances, attachment approach, and sightlines before installation can also prevent drift.
Do material choices affect performance or just appearance?
They affect both. Materials influence durability, maintenance, and how the system performs under rooftop conditions. They also shape the visual outcome.
Final Thoughts
RTU screening sits right where design intent and construction reality meet. When those perspectives align, the result tends to feel cohesive and intentional. When they do not, even well-executed systems can feel disconnected from the building.
In most cases, architects are not asking for perfection. They are asking for alignment with the intent that shaped the project. Contractors are not ignoring that intent. They are working within constraints that are often technical, structural, and logistical at the same time.
The gap between those perspectives is where most issues arise. Closing that gap does not require a complete shift in process. It requires earlier coordination, clearer expectations, and a shared understanding of how screening affects visibility, access, airflow, and roof performance.
When that happens, rooftop equipment screening becomes part of a coordinated, well-resolved project outcome rather than a late-stage problem. This is where well-executed rooftop hvac screening, rtu screening, and rooftop unit screening support both performance and architectural intent. If you are trying to get ahead of these issues early, aligning on system selection and layout before construction tends to make the biggest difference.
